83780011
HYS Heavy-duty base station antenna The element structure is encased in a UV inhibited fiberglass radome assuring long life and excellent resistance to harsh environment. Heavy-duty base station antennas. Most of Base Antennas are designed for outdoor use. HYS provides premium antenna components that provide functionality and durability of the antenna to deliver quality communication connections your depend on. Each the HYS antenna is carefully planned and developed to ensure great transmission over many uses. HYS (136-174/400-470MHz) Antenna does not improve signal for VHF UHF Radio or other devices not directly wired to the antenna, the antenna must be connected via COAXIAL CABLE to an existing repeater/radio device. Not includes COAXIAL CABLE. ELECTRICAL SPECIFICATIONS&MECHANICAL SPECIFICATIONS Frequency Range 144/430MHz VSWR <1.5 Impedance 50Ω Gain 4.5/7.2Bi Polarization Vertical Maximum Power Input-watts 200 W Horizontal Beam Width 360º Vertical Beam Width 30º / 19º Lighting Protection Direct Ground Connector UHF female (SO-239) Length 5.7ft( 1.750m)-68.89inch Weight 1.0Kg Radiating Element Material Cu Radome Material Fiberglass Color White Material of Hardware-supplied Aluminum Alloy Two Sections Fiberglass Antenna 2pcs U-bolt brackets Stainless steel mount kits, U-bolt brackets and powder-coated aluminum block assemblies allow ease of mounting and resistance to corrosion. Hold Pole Diameter: Ø30～Ø62 mm. UHF FEMALE(SO239) A complete lineup of mounting accessories is available to support the HYS Base station antenna product line. Galvanized steel tower support arms provide Rugged mounting for antennas that must stand off tower legs. Copper & Black Rubber Band Copper: The antenna used Pure copper connector to reduce Power Loss.Black Rubber Band: Make better waterproof capability.2-section antenna features a heavy-duty fiberglass base station. Stainless Steel Car Clip CS Tactical Telescopic Antenna Mult-Band Antenna VHF UHF Antenna 4.3inch Magnetic Base 5m(16.4ft) RG-58 Cable Add to Cart Buying Options Buying Options Buying Options Add to Cart Buying Options Customer Reviews 4.3 out of 5 stars 124 3.8 out of 5 stars 4 3.8 out of 5 stars 4 — 4.4 out of 5 stars 611 4.2 out of 5 stars 15 Price $39.99$39.99 — no data — no data — no data $39.99$39.99 — no data Frequency range no data 144/430MHz(136-174Mhz&400-470Mhz) 144/245/430Mhz 144/430MHz(136-174Mhz&400-470Mhz) no data no data RG-58 Cable length 5M(16.4ft) no data no data no data 5M(16.4ft) 5M(16.4ft) Maximum Power Input-watts no data 70W 100W 100W no data no data Gain no data 3.5dBi/5.5dBi 3.5dBi/4.5dBi/6dBi 3dBi/5dBi no data no data
Amateur Dual-Band Base Antenna (White Fiberglass with stainless steel radials); Pre-Tuned 144MHz VHF(136-159Mhz)/430MHz UHF(415-445Mhz);
Pre-tuned; No tuning needed; Length5.7ft(1.75m) tall; Two sections; 4.7dBi actual gain VHF & 7.2dBi actual gain UHF; 1/2 wave VHF & 5/8 wave UHF;

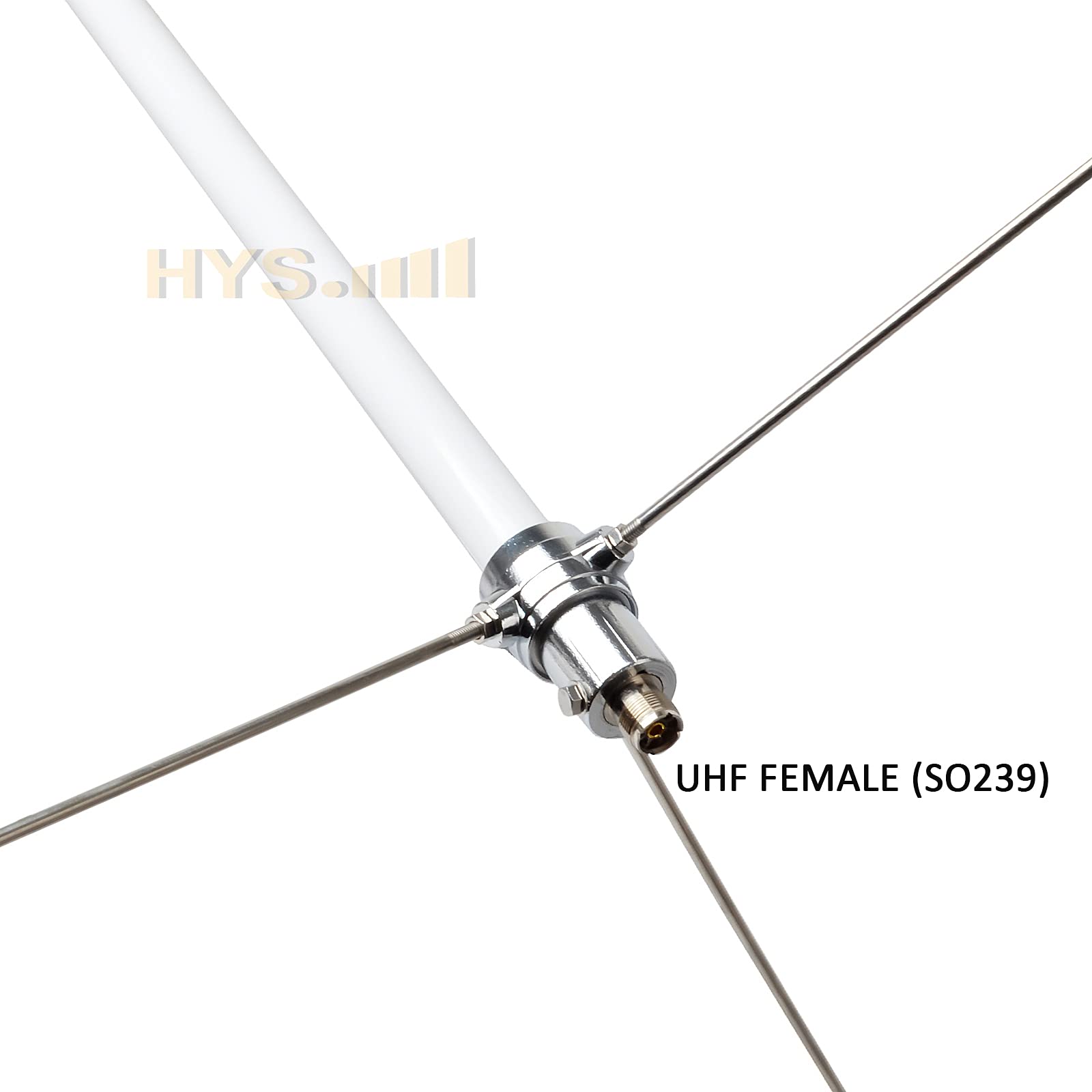

White fiberglass construction; UHF female (SO-239) connector, Standardized interface ensures seamless integration with most ham radio equipment and coaxial cables; Includes mounting bracket and hardware; Radiating Element Material CU;
PolarizationVertical; Maximum Power Input-watts200 W; Horizontal Beam Width 360º; Vertical Beam Width 30º / 19º; Lighting Protection Direct Ground; Connector UHF female (SO-239);

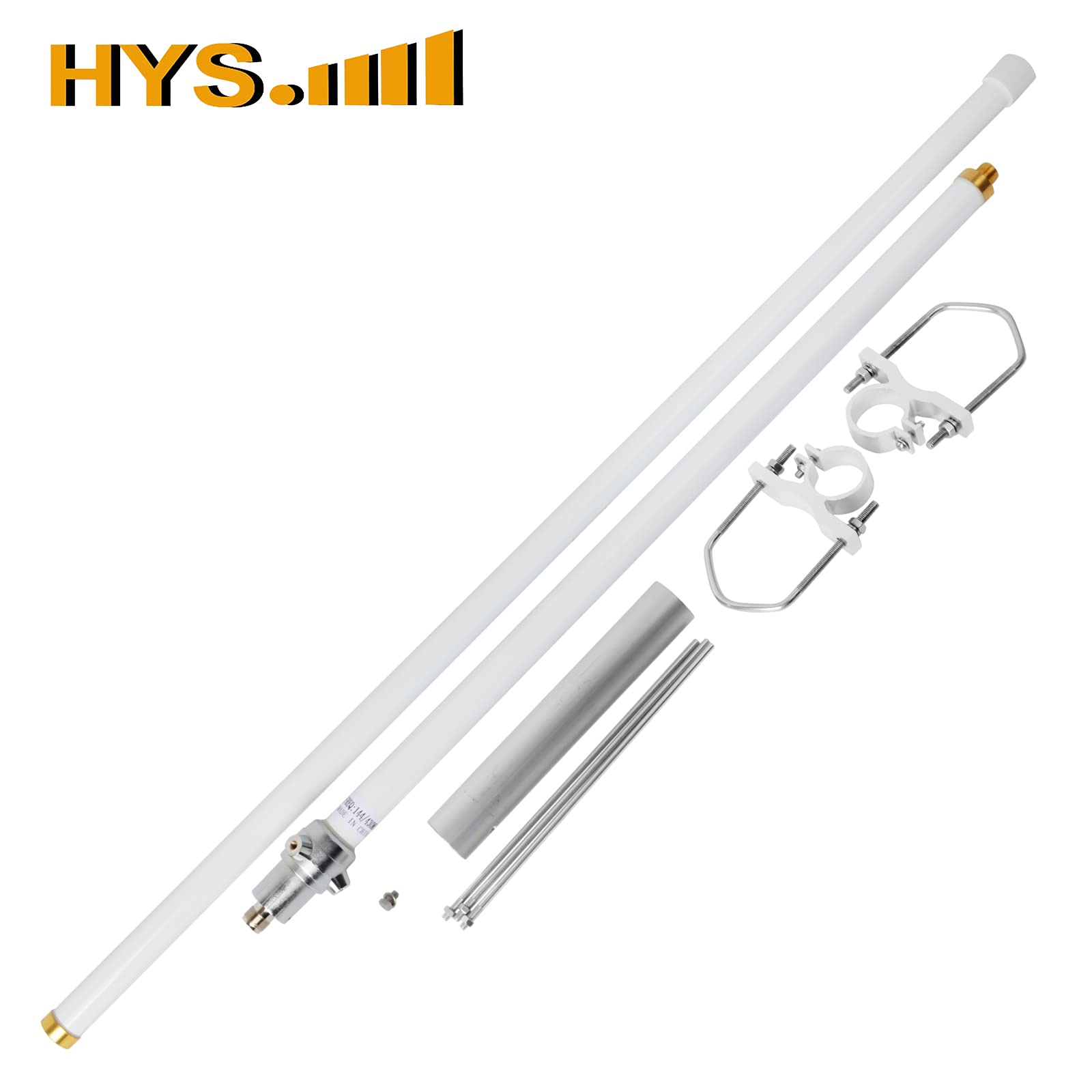

HYS Fiberglass Antenna’s impact resistant housing and included 2pcs U-bolts stainless steel mounting hardware make it suitable for many outdoor applications, including marine, buildings, utility poles, roof, surveillance trailers, well sites, remote telemetry units, meters, homes and offices.
